Loom Batching Motion Unit
Loom Batching Motion Unit
The PRANSHI Loom Batching Motion Unit is specially engineered to provide superior fabric handling, accurate winding, and reliable performance. It is ideally suited for Terry Towel Weaving Plants and is also compatible with Technical Textiles, Denim Fabrics, Cotton Fabrics, Jute Fabrics, and Nonwoven Fabrics.
The system can be installed on almost all types of textile looms, including Air Jet Looms and other compatible weaving machines. Its robust design ensures smooth, uniform, and crease-free fabric winding while maintaining consistent fabric tension for high-quality production.
The unit is built on a heavy-duty MS Platform with strong side brackets and a Stainless Steel Guide Roller, providing excellent stability, easy operation, and reliable performance. It is powered by a high-efficiency Three-Stage Helical Geared Motor, ensuring precise and uniform winding with minimal fabric wrinkles.
An optional Fabric Inspection Unit with a Large LED Illuminated Inspection Board is available for
customers who require fabric inspection before batching. This optional system enables operators to
identify weaving defects, stains, missing picks, and other fabric imperfections before the fabric is wound
onto the batching roll.
The PRANSHI Loom Batching Motion Unit is specially engineered to provide superior fabric handling, accurate winding, and reliable performance. It is ideally suited for Terry Towel Weaving Plants and is also compatible with Technical Textiles, Denim Fabrics, Cotton Fabrics, Jute Fabrics, and Nonwoven Fabrics.
The system can be installed on almost all types of textile looms, including Air Jet Looms and other compatible weaving machines. Its robust design ensures smooth, uniform, and crease-free fabric winding while maintaining consistent fabric tension for high-quality production.
The unit is built on a heavy-duty MS Platform with strong side brackets and a Stainless Steel Guide Roller, providing excellent stability, easy operation, and reliable performance. It is powered by a high-efficiency Three-Stage Helical Geared Motor, ensuring precise and uniform winding with minimal fabric wrinkles.
An optional Fabric Inspection Unit with a Large LED Illuminated Inspection Board is available for customers who require fabric inspection before batching. This optional system enables operators to identify weaving defects, stains, missing picks, and other fabric imperfections before the fabric is wound onto the batching roll.

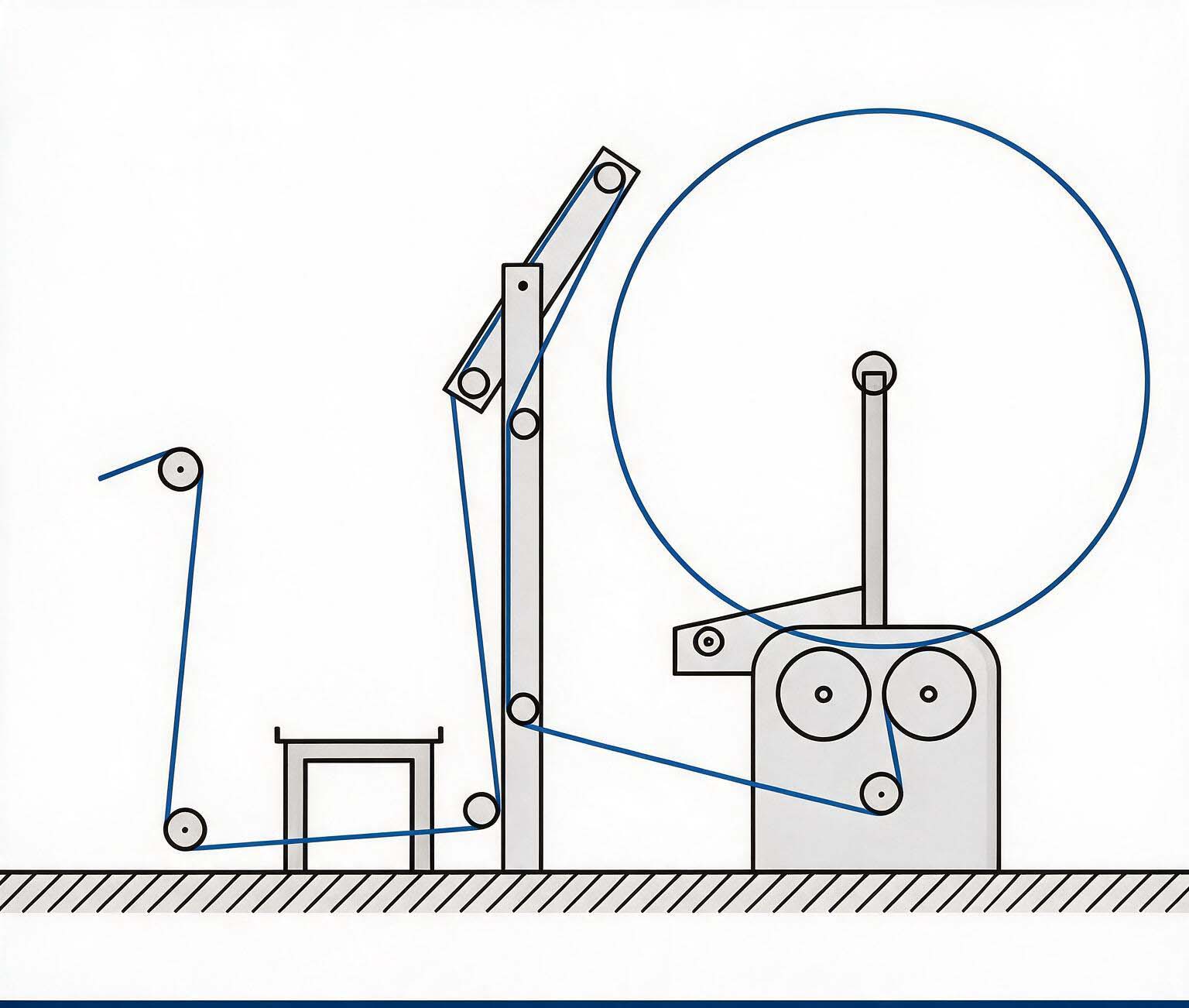

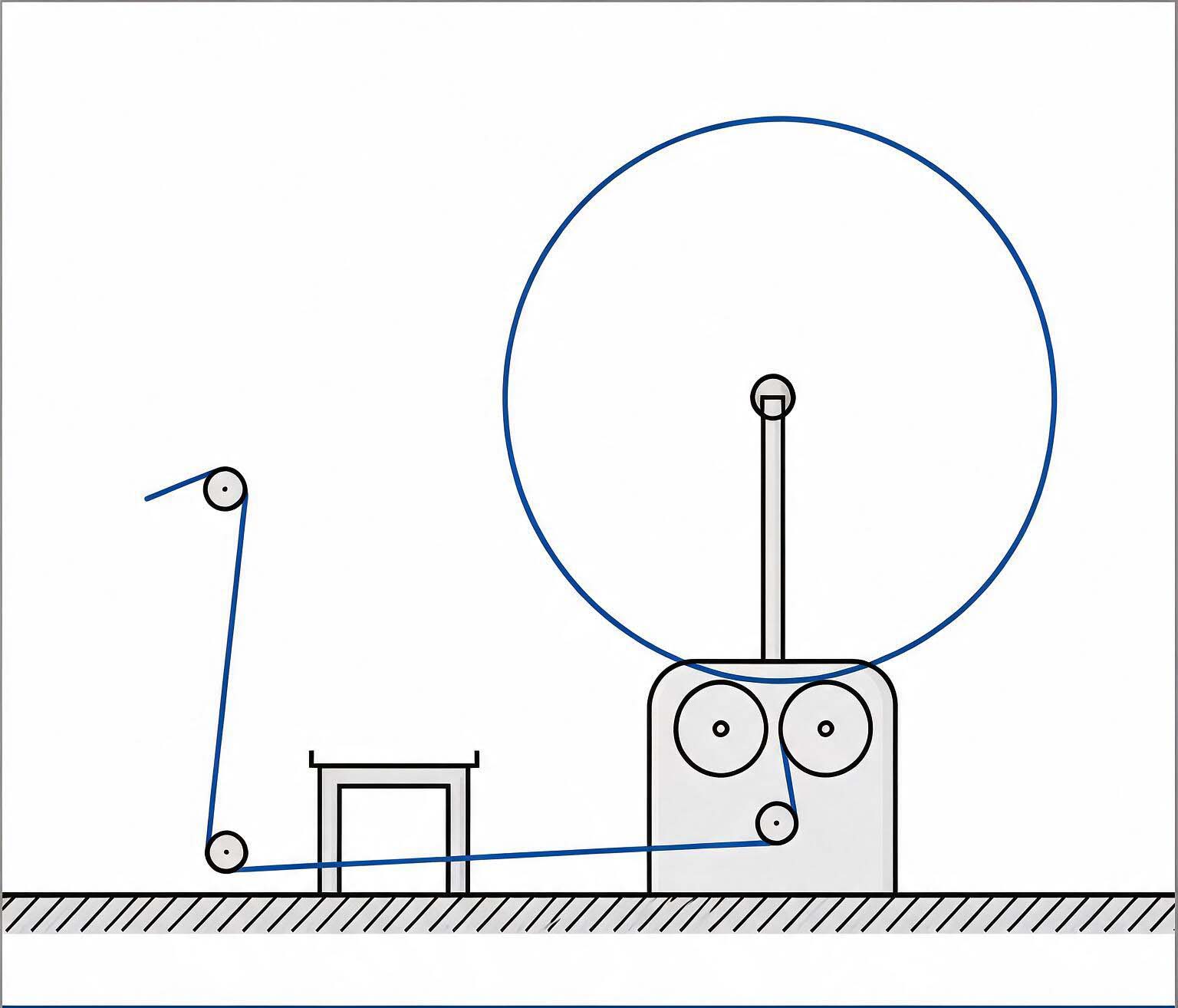

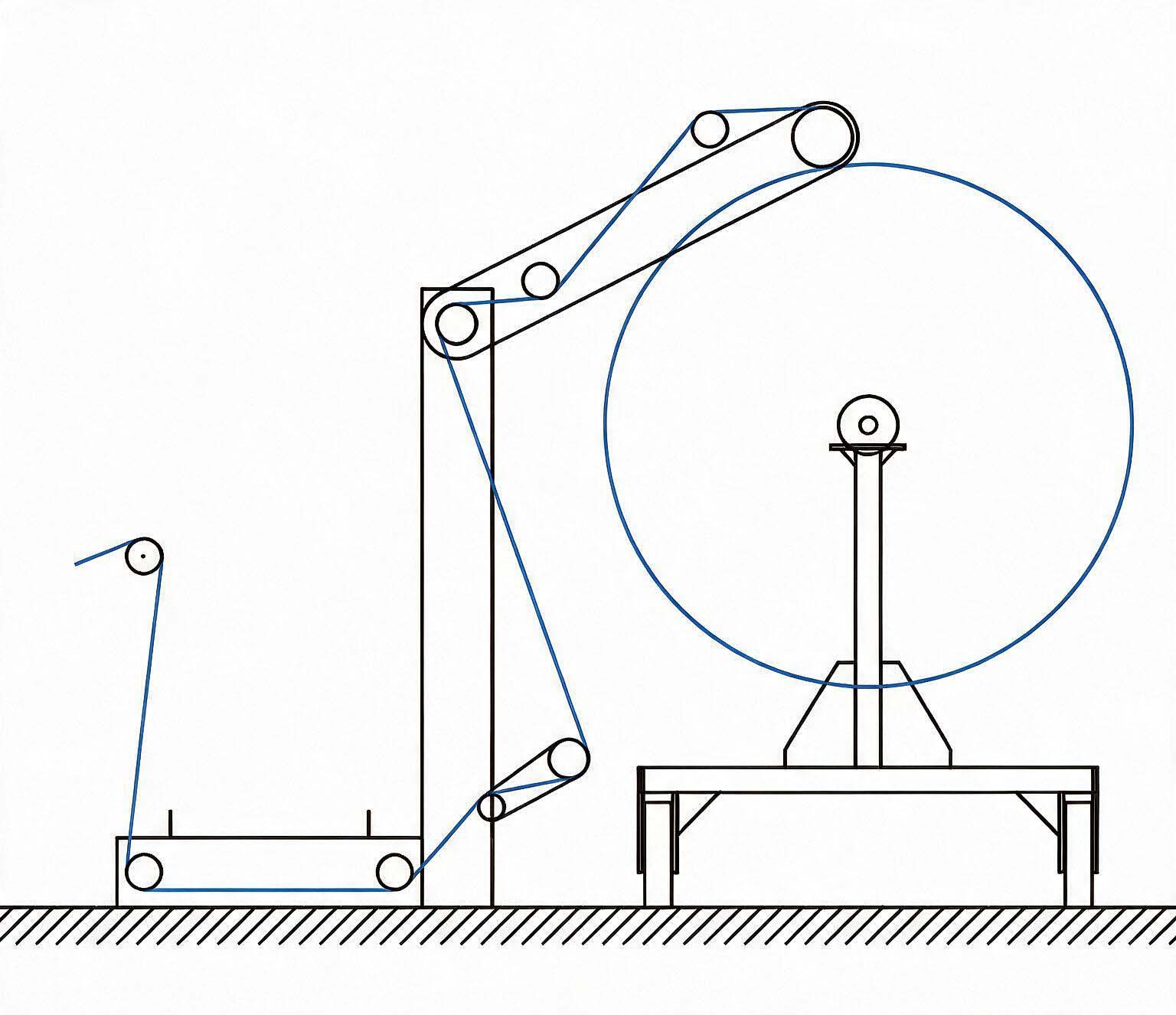

Multiple Activities of Batching Motion
Key Features
Key Features
Technical Specifications
Technical Specifications
| Particular | Specification |
|---|---|
| Product | Loom Batching Motion Unit |
| Suitable Looms | Air Jet Looms & Other Compatible Textile Weaving Machines |
| Suitable Fabrics | Terry Towel, Technical Textiles, Denim, Cotton, Jute, Nonwoven & Other Woven Fabrics |
| Fabric Width | 1800 mm to 6000 mm |
| Rolling Principle | Surface Winding |
| Output Fabric Roll Diameter | Standard: 1200 mm • Maximum: 1500 mm (Optional up to 2000 mm) |
| Maximum Roll Weight Capacity | Up to 2000 kg |
| Machine Speed | Synchronized with Loom Speed through Automatic Mechanical Tension Control |
| Drive System | High-Efficiency Three-Stage Helical Geared Motor |
| Fabric Edge Alignment Accuracy | ≤ 5 mm |
| Guide Roller | MS and Stainless Steel Guide Roller |
| Machine Structure | Heavy-Duty MS Platform with Robust Side Brackets |
| Inspection Unit (Inclined Inspection Screen) | Optional Heavy-Duty Fabric Inspection Unit with Large LED Illuminated Inspection Board & Guide Rollers |
| Power Supply | 3 Phase, 380–415 V, 50 Hz (Can be customized as per country standards) |
| Installation | Easy Installation & Low Maintenance |
